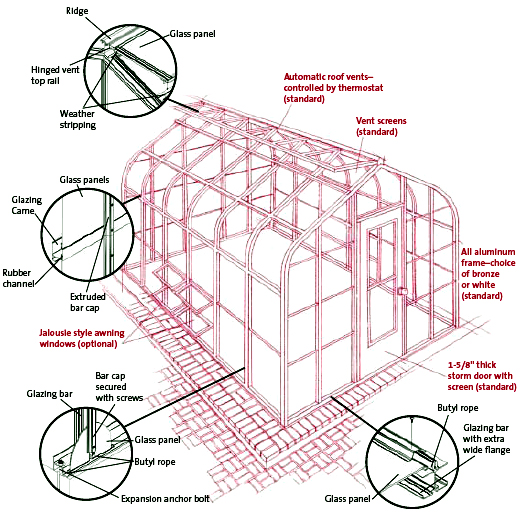

Frame
Standard extruded aluminum frame for strength and durability. Bronze or
white baked-on enamel frame. ALl framing and glazing members are
pre-drilled and pre-cut.
Glazing
Standard 1/8" clear tempered glass or triple-wall
8mm polycarbonate (available in straight eave only.)
Glazing
Components
Extruded butyl rope is used to keep glass secure. Butyl
rope has outstanding sealing properties, and is more resilient and less
affected by age and weathering than other types of bedding.
Ventilation
Standard continuous row of thermostatically controlled
roof vents with screen. Vent assemblies are equipped with extruded E.P.M.D.
weather stripping to create an air/water seal.
Model Choices
Many standard lengths and widths available.
Door
All models available with aluminum storm door(s) (12',
16', and 20' freestanding models available with double doors). 1-5/8"
heavy duty frame. Elegant brass handle. Keyed deadbolt for security.
Foundation
Foundation or footer required. In cold climates a
foundation below frost line is recommended. Standard kneewall height is
28" for kneewall models.
Engineering
Designed and engineered to meet loading requirements
as required by building code.

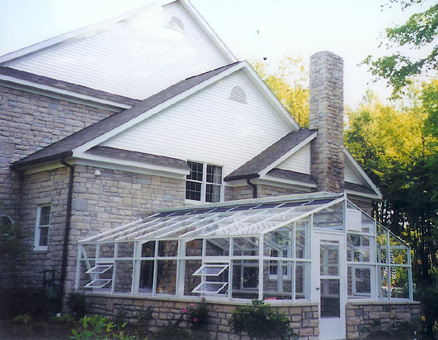

Lean-To
Standard Widths Available
6' 2-11/16" Wide
7' 9-3/8" Wide
9' 10-7/16" Wide
Freestanding
Standard Widths Available
9' 1-5/8"
12' 5-3/8"
15' 6-3/4"
19' 8-7/8"
15' 6-3/4"
19' 8-7/8"
|
